Servo System

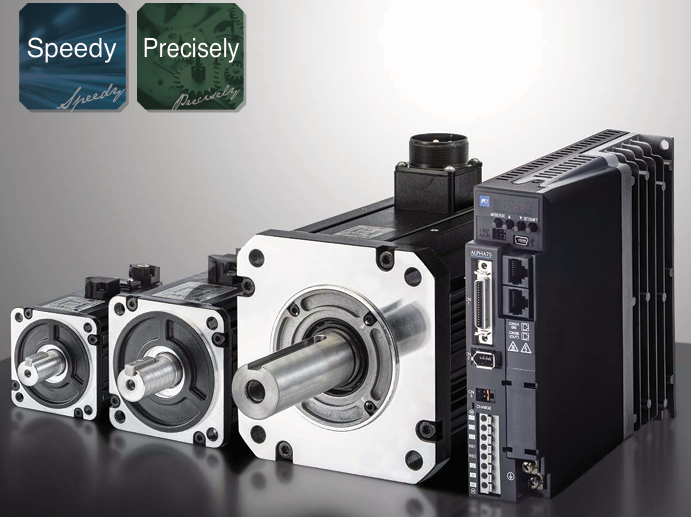

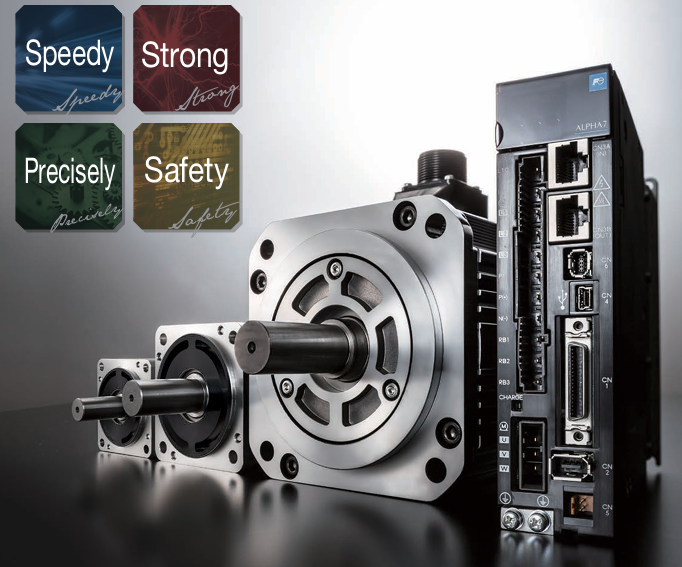

FUJI SERVO SYSTEM ALPHA7
Description
A high-speed, high-precision servo system with enhanced safety and productivity features, ideal for advanced industrial automation.
Features
- Speed and frequency response at 3.2kHz for ultra-high-speed control
- 350% maximum instantaneous torque for quick response
- 24-bit fine resolution encoder for high-precision control
- Equipped with STO, SS1, SLS, SSM, and SBC safety functions
- Built-in tuningless mode, automatic tuning, vibration suppression
- Compact and IP67 compliant servomotors
- Full compatibility with ALPHA5 series motors
Specifications
Model
ALPHA7
Technical Specs
Rated output: 0.05 to 5.0 kW
Rated speed: up to 6000 r/min depending on model
Encoder: 24-bit ABS/INC options
Power supply: 200-240VAC single/three-phase
Interface: SX bus, EtherCAT, Modbus, Analog/Pulse
Overload capability: 350% max instantaneous torque
Compliance: CE, UL, TUV, RoHS, IP67
Control modes: Position, Speed, Torque
Amplifier Models: RYT***F7-**2
Motor Models: GYS, GYB, GYG with various inertia levels
Rated speed: up to 6000 r/min depending on model
Encoder: 24-bit ABS/INC options
Power supply: 200-240VAC single/three-phase
Interface: SX bus, EtherCAT, Modbus, Analog/Pulse
Overload capability: 350% max instantaneous torque
Compliance: CE, UL, TUV, RoHS, IP67
Control modes: Position, Speed, Torque
Amplifier Models: RYT***F7-**2
Motor Models: GYS, GYB, GYG with various inertia levels
Interested in this product?
Contact our sales team for pricing, availability, and technical support.
Looking for a specific model or accessory?
This series includes additional variants, sizes, and accessories that aren't all listed here.
As an authorized Fuji Electric distributor, we can supply the full range — just let our sales team know what you need.
