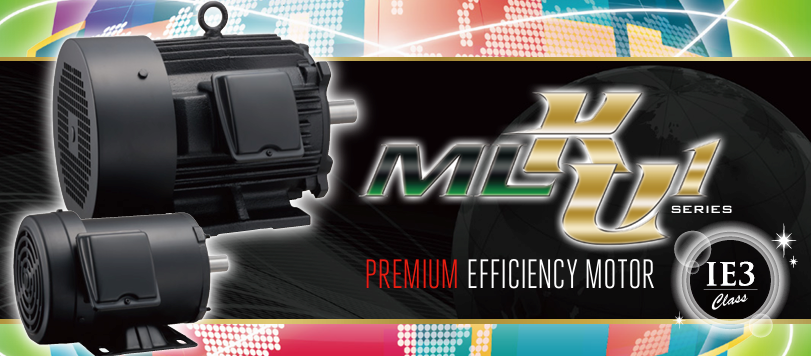

Fuji Low-Voltage Induction Motors
Description
Fuji Electric’s Low-Voltage Induction Motors offer energy-efficient, high-performance solutions for a broad range of industrial applications. Available in both premium efficiency (IE3) and standard efficiency (IE1) models, these motors are designed to meet international standards while delivering long-term reliability, quiet operation, and full inverter compatibility.
Features
- Available in IE3 (Premium) and IE1 (Standard) efficiency classes
- Output range: 0.1 kW to 375 kW
- Quiet fan design reduces noise by ~5 dB(A)
- Class 155 (F) insulation for long service life
- Supports constant torque operation from 0.5–60 Hz with vector control inverter
- Dual voltage support (200/400V, 220/440V) for ?132kW models
- Designed for easy maintenance with standard components
- IP55 protection for dust and water resistance
- RoHS compliant and CE marked
- Wide selection of frame sizes, mounting styles, and terminal box positions
Specifications
Power Range: 0.1 kW to 375 kW
Insulation: Class 155 (F)
Enclosure: Totally enclosed fan-cooled (TEFC)
Protection: IP55 (IEC 60034-5)
Mounting Types: IMB3, IMV1, flange and foot types
Voltage: 200V / 400V, 220V / 440V (?132kW), single voltage for >160kW
Frequency: 50/60 Hz, inverter drive support 0.5–60 Hz
Ambient: –20°C to +50°C, up to 100% RH (non-condensing)
Noise Reduction: ~5 dB(A) lower vs. conventional models
Certifications: CE, RoHS compliant
