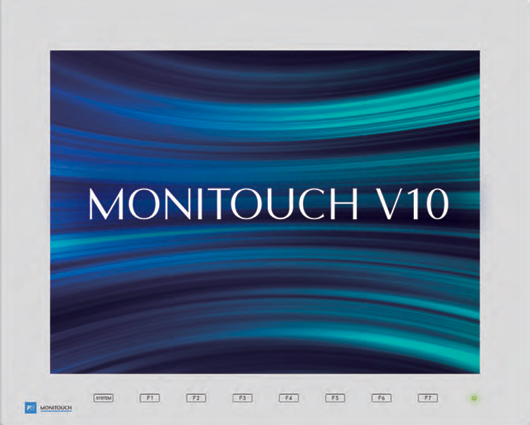

Monitouch V10 Series
Description
The Monitouch V10 Series is Fuji Electric’s high-performance HMI line with quad-core CPU and industry-leading screen switching, communication, and rendering speed. It supports full backward compatibility with the V9 series and introduces advanced features like event logging with USB video support, intuitive project configuration, and high-speed data handling.
Features
- Quad-core CPU with fastest screen switching & startup
- Full compatibility with V9 hardware and software
- 15.0”, 12.1”, 10.4”, and 8.4” TFT LCD displays
- 16.7 million colors and analog resistive touch
- RS-232C/422/485, Ethernet (1000BASE-T), USB 3.0
- VNC server for remote operation
- USB video event logging and video playback
- Enhanced security with up to 16 levels of access control
- Graph/Trend/PDF output features
- Scrollable large screen areas for plant-level overview
- Compatible with 460+ industrial communication protocols
Specifications
Resolution: 1024×768 (15.0”), 800×600 (others)
Touch: Analog resistance film
CPU: Quad-core
Memory: 256MB FROM, 900KB SRAM
Connectivity: RS-232C/422/485, Ethernet (1000BASE-T), USB-A 3.0, USB mini-B 2.0, SDXC
Power Supply: 100–240V AC or 24V DC
Protection: IP66 front, IP20 rear (with waterproof gasket)
OS Compatibility: Windows-based configuration via Smart Editor
Mounting: Panel mounting
Optional Features: Video/RGB input, wireless LAN, extended wired LAN, audio output
Environmental: -10 to 50°C, up to 85% RH (non-condensing)
